Machine Specifications

DEA EPSILON 3307

COORDINATE MEASURING MACHINE

TRAVEL ENVELOPE: X-AXIS 161.75", Y-AXIS 54.0", Z-AXIS 53.375"

PC DMIS SOFTWARE / 5 AXIS PH-10 PROBE.

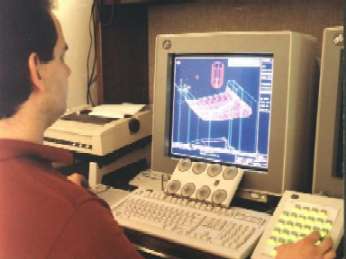

CATIA CAD/CAM V4.2.2 on IBM RS6000 platform.

DANGAR uses CATIA for tool design, NC Programming, Reverse Engineering and modeling from digitized point data.

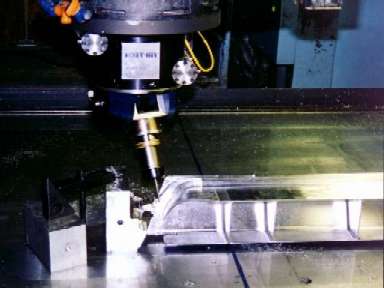

ARTICULATING 5-AXIS HEAD

MOUNTED TO G&L 50 HP SETCO SPINDLE

TRAVEL ENVELOPE: A-AXIS +/- 90, C-AXIS 360

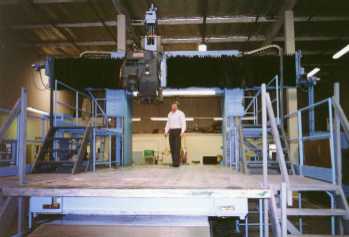

CNC 5-AXIS GIDDINGS N' LEWIS

PART ENVELOPE: X-AXIS 242", Y-AXIS 115", Z-AXIS 72"

TRAVEL ENVELOPE: X-AXIS 242", Y-AXIS 115", Z-AXIS 25"

OTHER EQUIPMENT



CORDAX 805 COORDINATE

MEASURING MACHINE

TRAVEL ENVELOPE: X-AXIS 57", Y-AXIS 31", Z-AXIS 25"



CNC 3-AXIS ROKU

ROKU VERTIMAC-B 24-ATC

TRAVEL ENVELOPE: X-AXIS 30", Y-AXIS 16", Z-AXIS 18"

WISE PD CAD/CAM on PC Based System.

5-AXIS CAM SYSTEM

LAGUN FU4-LA MANUAL 15 HP UNIVERSAL MILL

TRAVEL ENVELOPE: X-AXIS 64", Y-AXIS 20", Z-AXIS 12"

PRATT & WHITNEY JIGBORE 3E.

56" X 28" Table.

TRAVEL ENVELOPE: X-AXIS 56", Y-AXIS 28", Z-AXIS 36".



INSPECTION SURFACE PLATE ( WHITE GRANITE ).

5' X 12' X 14"

PRATT & WHITNEY JIGBORE 3B.

56" X 22" Table.

TRAVEL ENVELOPE: X-AXIS 56", Y-AXIS 22", Z-AXIS 24".

5 TON OVERHEAD CRANE
